● Unmanaged PoE Switch
● 4*10/100/1000 Base-T PoE and 1*10/100/1000 Base-T RJ-45 port
● Ports 1-4: 802.3 af/at PoE
● The boost voltage technology makes the9~52V DC input voltage
can be converted to 48V PoE output voltage
● Multiple DIP mode: PoE dog/Vlan/Ex_1-2/Ex_1-4
● -40℃~80℃ operating temperature
● 6kV surge immunity

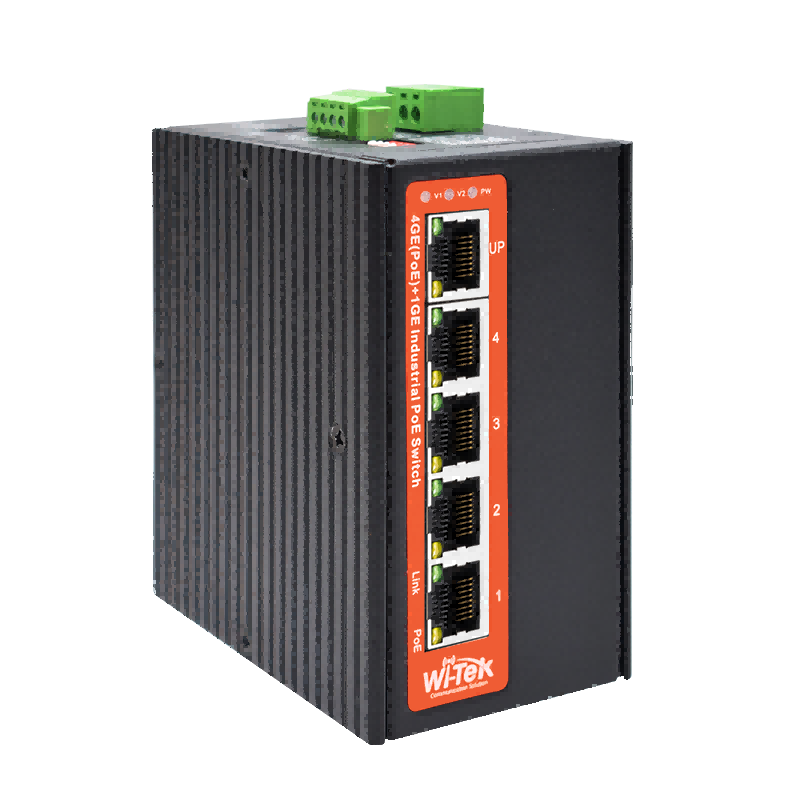

| Model | WI-PS305G-I-DC |
| Hardware Features | |
| Downlink Ports | 4*10/100/1000 Base-T PoE RJ-45(Auto-MDI/MDI-X) |
| Uplink Ports | 1*10/100/1000 Base-T RJ-45(Auto-MDI/MDI-X) |
| Console Port | N/A |
| Alarm In/Out Interface | N/A |
| PoE | |
| PoE Standard | Ports 1-4: 802.3 af/at PoE |
| PoE Power Supply Type | End-span |
| PoE Budget | 120W |
| Boost PoE Budget | 120W |
| Switch Property | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Forwarding Modes | Store and forward |
| Packet Buffer | 2.5Mbit |
| MAC Table | 2K |
| Switching Capacity | 12Gbps / non-blocking |
| Packet Forwarding Rate | 8.93Mpps |
| Switch Property | |
| Input Voltage | Power 1 (Main): 37~57V DC
Power 2 ,3 (Backup): 37~57V DC Boost Power 3: 9-52V |
| Reliability | |
| Surge Immunity | 6kV, Standard: IEC6000-4-5 |
| ESD Protection | 8kV Contact Discharge, 15kV Air Discharge, Standard: IEC61000-4-2 |
| MTBF | about 30Wh |
| MTBF Standards | Telcordia SR-332，25℃ |
| Operating Temperature | -40℃~80℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%~95% (Non-condensation) |
| Physical Parameter | |

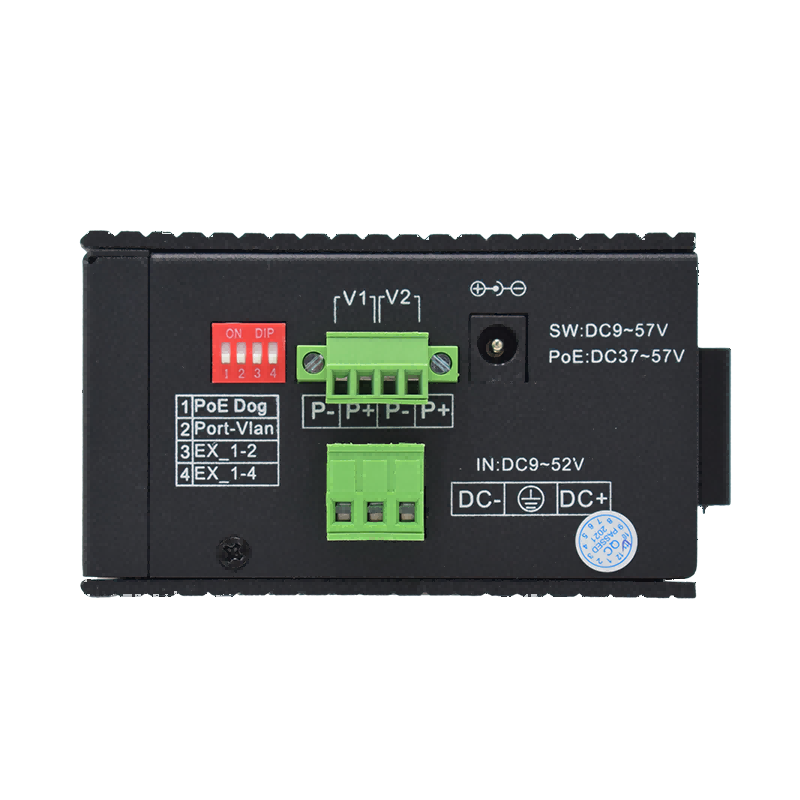

| Dip Switch | PoE dog/Vlan/Ex_1-2/Ex_1-4 |
| Physical Parameter | |

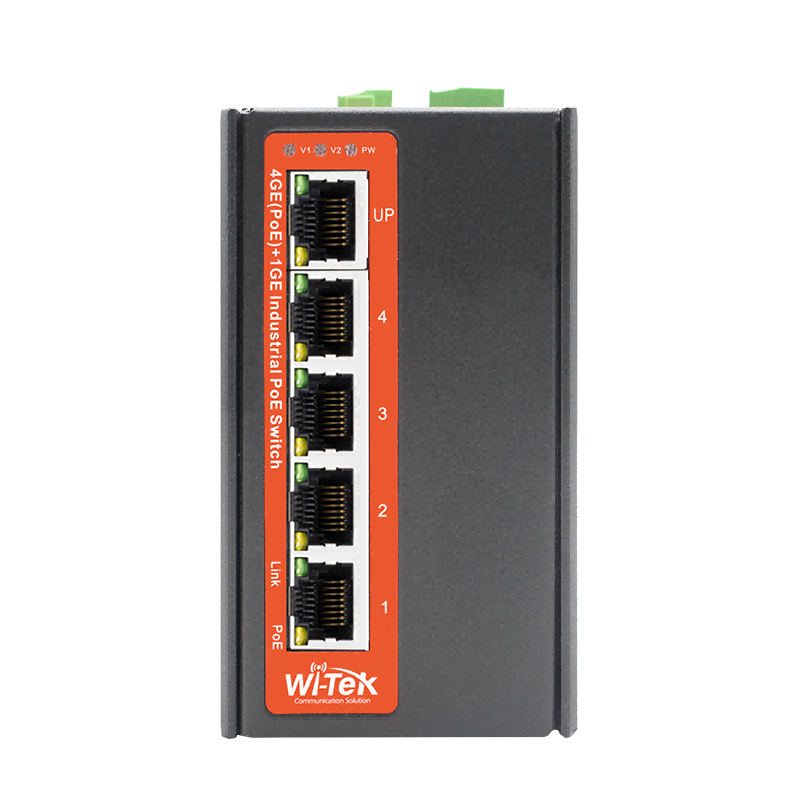

| Led Indicators | 3* power supply indicators
1* system working indicator 1* alarm indicator 5*RJ45 PoE indicator 5*RJ45 Link indicator |
| Dimensions (W*D*H) | 106*100*60mm |
| Net Weight | 1.4kg |

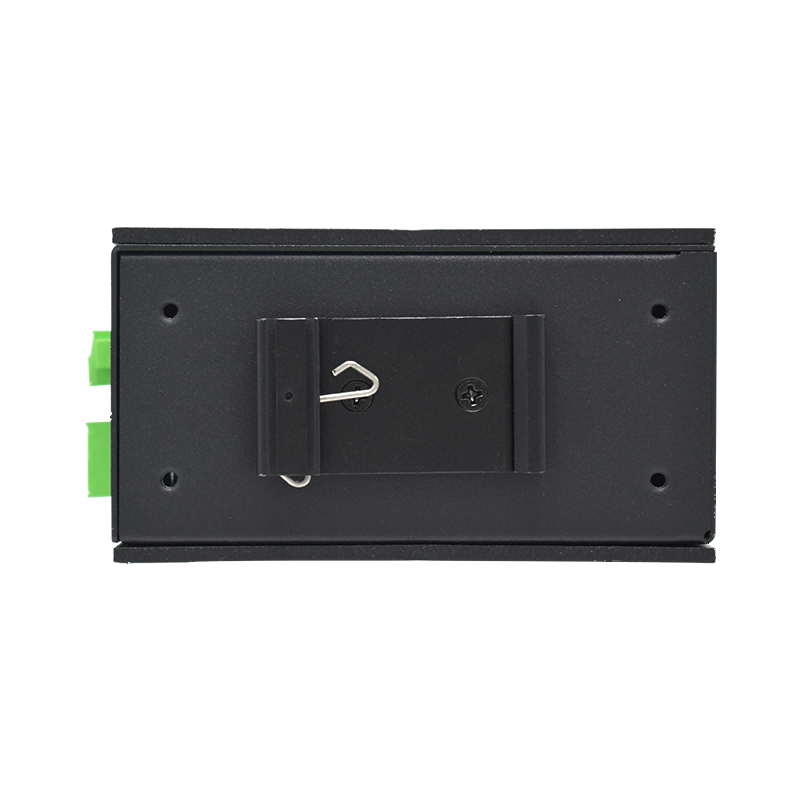

| Installation | Desktop/DIN-rail/wall mounting |
| Certifications | |
| Certifications | CE, FCC |
