GS-MA-ARC DC200S is a next generation door controller, based on “IP to door” concept eliminating need of age-old individual cable laying requirements between access panel to reader or lock for Access Control applications. ARC DC200 works on forefront PoE+ IT infrastructure with door controller on each door with minimum wiring that improve solution reliability and reduce installation cost drastically. It supports two Matrix RFID or fingerprint readers on RS-485 or third-party readers on Wiegand interface for entry or exit. Moreover, ARC is SSL enabled access control IP panel which provides secure communication between controller and server makes it ideal panel lite controller for any, critical or simple access control organizational applications. COSEC ARC also supports multi-mount options such as wall-mount and standard din rail mount.
| GENERAL | |
|---|---|
| Maximum Readers | 2 Matrix or Third-Party Readers |
| Maximum Doors | 2 Doors/Locks |
| CAPACITY | |
| Maximum Users | 50,000 Users in Server Mode 25,000 Users in Standalone Mode |
| Event Buffer | 5,00,000 Events Storage on FIFO |
| COMMUNICATION | |
| Ethernet | Yes. 10/100 Mbps |
| PoE+ | Yes (IEEE 802.3 af/at) (PoE/PoE+) |
| RS485 | Yes. Connect Matrix Readers |
| Wiegand | Yes. Connect 3rd Party Wiegand Readers |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Yes (4- state) Programmable NO, NC and Supervised |
| Door Lock Relay | Yes (Max. 30VDC @ 2A) |
| Aux-In | Yes (4-state) |
| Aux-Out | Yes (Max. 30VDC @ 2A) |
| Reader Distance | 400 meters (on RS485)/100 meters (on Wiegand) |
| HARDWARE | |
| CPU | AM3352 Processor, 800 MHz |
| Memory | Flash: 256MB; RAM: 2 GB |
| Reset Switch | Yes (for Making Device Default) |
| AUDIO VISUAL | |
| LEDs | 1 Tri Color LED |
| Buzzer | Yes |
| ENVIRONMENTAL | |
| Operating Temperature | -10 °C to + 50 °C (14°F to 122°F) |
| Humidity | 5% to 85 % RH Non-Condensing |
| POWER | |
| Power | Adaptor: 12 VDC @ 2 A PoE+: 12 VDC @1.8 A |
| Power to Door Lock | With PoE: 12VDC@ 0.5A for 1 Lock With PoE+: 12VDC @ 1A for 1 lock or 12VDC @ 0.5A for 2 Lock (0.5A Each Lock) Adaptor: 12VDC@ 1A |
| Reader Power Output | Max 12VDC @ 0.250A (on External Supply or PoE/PoE+) |
| MECHANICAL | |
| Dimensions (WxHxD) | 78mmx140mmx25mm (3”x5.5”x0.98”) |
| Weight | Product Weight: 0.45 Kg (0.99Lbs) Product with Accessories Weight: 0.74 Kg (1.63Lbs) |
| Enclosure Material | Metal Aluminium Casing (Black) |
| CERTIFICATIONS | |
| Certifications | RoHS, CE, FCC and UL |
| COMPATIBILITY | |

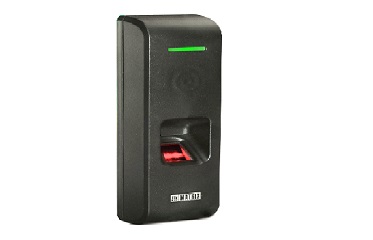

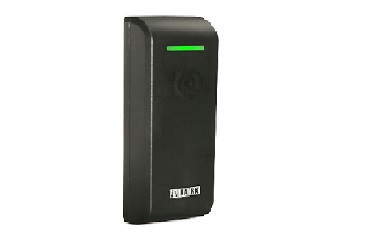

| Matrix Readers | GS PATH Series Third Party Wiegand Readers |
| Operational Modes | Server Mode (With or Without PANEL ) with CENTRA or VYOM Standalone Mode (With PANEL LITE) |
| INSTALLATION | |
| Mounting | Wall mounting with L shape Hinge Din rail mounting provision. (Din rail mounting part is not included) |
| PACKAGING | |
| Packaging Content | 1. Main unit 2. Adaptor (12VDC, 2A) 3. Wall mounting plate 4. Screws M5*24 CSK -2 Nos 5. Reader Cables (2 pcs.) 6. Connectors |
